John Deere約翰迪爾強(qiáng)鹿柴油發(fā)動機(jī)搖臂總成的裝配

1. Lubricate shaft OD, rocker arm bores, and rocker armsupports with clean engine oil.

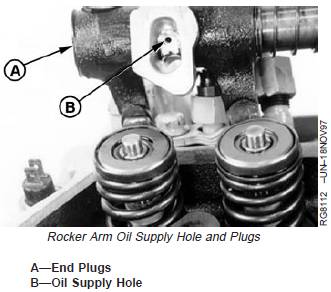

IMPORTANT: The oil supply hole (B) on the rockerarm shaft must be toward the flywheelend of the engine.

2. Assemble springs, rocker arms, and rocker armsupports onto shaft in the same location as removedfrom.

NOTE: Install bowed washers with cupped side facingaway from the plug.

3. Install bowed washers and new end plugs (A) firmly inend of shaft.
